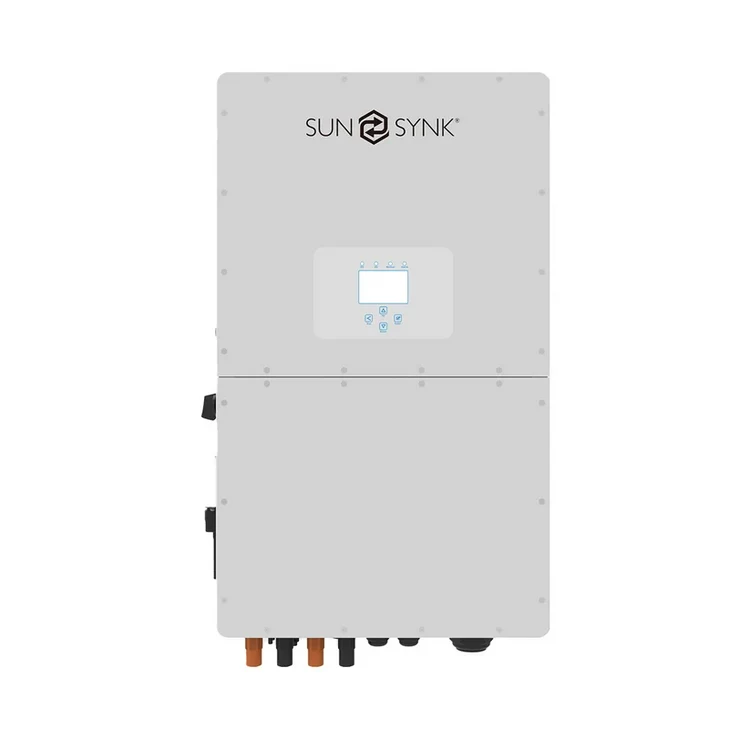

Sunsynk 30kW, High Voltage Three Phase Hybrid Inverter
The Sunsynk 30kW Three Phase High Voltage Hybrid Inverter (Model: SUNSYNK-30K-SG01HP3-EU-BM3) is a high-performance commercial inverter that efficiently manages power from solar, grid, and generator sources. It offers flexible installation with or without batteries, features remote monitoring, and supports scalable setups with up to 10 parallel units—each with its own battery—making it ideal for larger and more complex solar energy systems.
Product Features
- Four MPPT trackers enable flexible photovoltaic array configurations
- Supports up to 30% DC oversizing beyond rated AC power
- Operates with or without batteries, utilizing solar and grid input
- Built-in Wi-Fi remote monitoring capability
- Integrated Type II DC/AC surge protection device
- Standard protection includes overload, over-temperature, and short-circuit
- Scalable parallel connection of up to 10 units, each with individual batteries
Specifications:
Battery Input
- Battery Type: Li-Ion
- Battery Voltage Range: 160V–800V
- Maximum Charging Current: 50A
- Maximum Discharging Current: 50A
- Number of Battery Inputs: 2
- Charging Strategy: Self-adaption to BMS
PV Input
- Maximum DC Input Power: 39,000W
- Maximum DC Input Voltage: 1,000V
- Start-Up Voltage: 180V
- MPPT Voltage Range: 150–850V
- Full Load DC Voltage Range: 360–850V
- Rated DC Input Voltage: 600V
- PV Input Current: 36A + 36A + 36A
- Max PV Isc: 55A + 55A + 55A
- Number of MPPT Trackers: 3
- Strings per MPPT Tracker: 2 + 2 + 2
AC Output
- Rated AC Output and UPS Power: 30,000W
- Maximum AC Output Power: 33,000W
- Peak Power (off-grid): 1.5 times rated power for 10 seconds
- AC Output Rated Current: 45.5A / 43.5A
- Maximum AC Current: 50A / 47.9A
- Max Three-Phase Unbalanced Output Current: 60A
- Max Continuous AC Passthrough: 200A
- Power Factor: 0.8 leading to 0.8 lagging
- Output Frequency and Voltage: 50/60Hz; 3L/N/PE 220/380, 230/400Vac
- Grid Type: Three Phase
- Total Harmonic Distortion (THD): <3% of nominal power
- DC Injection Current: <0.5% In
Efficiency
- Max Efficiency: 97.6%
- Euro Efficiency: 97.0%
- MPPT Efficiency: >99%
General Information
- Operating Temperature Range: -40°C to 60°C, derating >45°C
- Cooling Method: Intelligent air cooling
- Noise: ≤65 dB
- Communication with BMS: RS485, CAN
- Weight: 88 kg
- Size: 527W × 894H × 294D mm
- Protection Degree: IP65
- Installation Style: Wall-mounted
- Warranty: 5 years
Certifications and Standards
- Grid Regulation: VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0-21, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149, NBR16150
- EMC/Safety Regulation: IEC62109-1/-2, NBT32004-2018, EN61000-6-1, EN61000-6-2, EN61000-6-3, EN61000-6-4
