Description

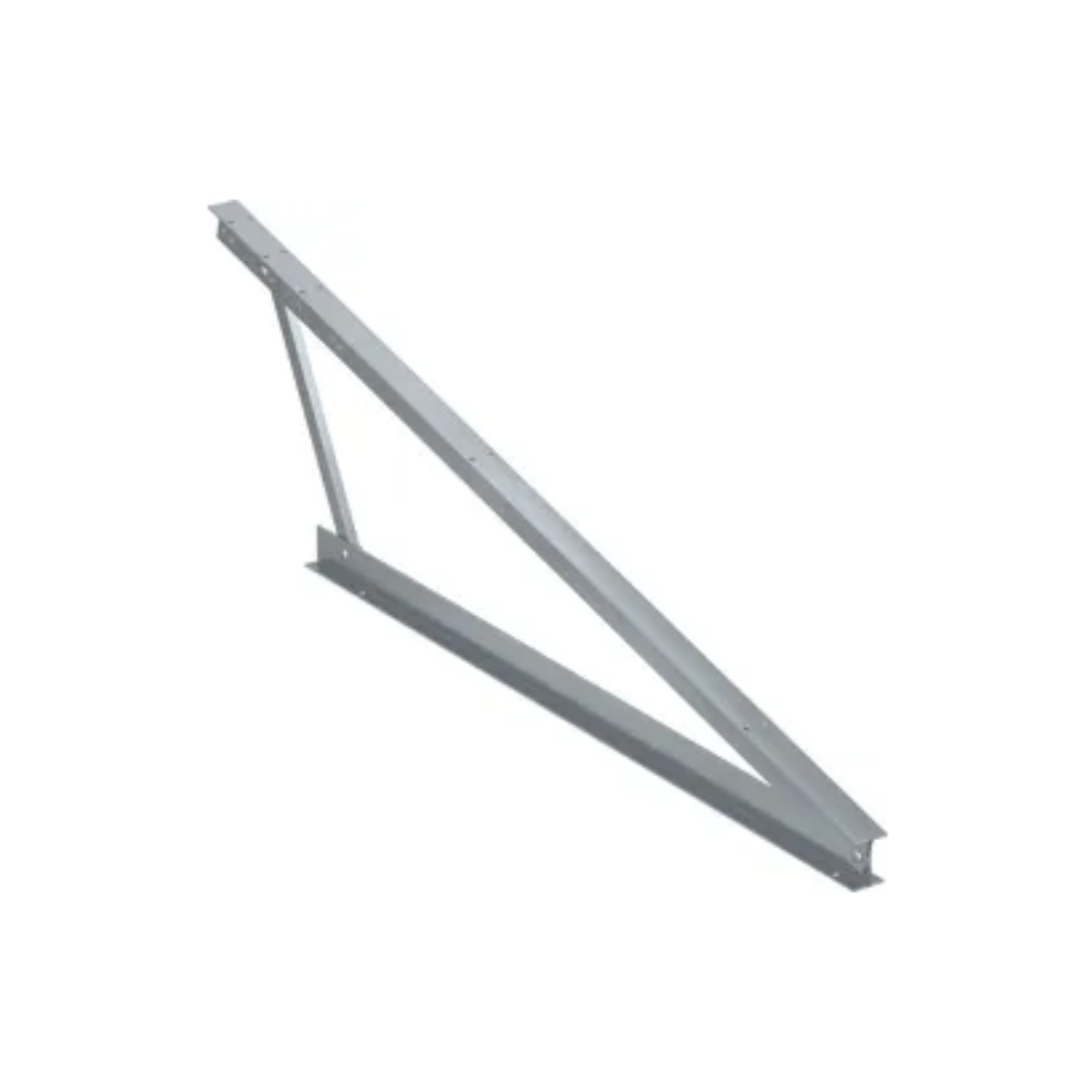

Extended-Span Heavy-Duty Solar Tilt Triangle Frame (Fischer Large-Format Tilt Frame)
A heavy-duty aluminum triangular support structure engineered with an extended base and long rafter beam to support large-format photovoltaic (PV) solar panels at a fixed tilt angle on flat roofs, ground installations, or concrete ballast blocks.
-
Extended Panel Capacity Design: Features an elongated upper rafter beam and widened base rail to accommodate larger, higher-wattage commercial solar modules or dual-panel portrait arrangements.
-
Flanged Base Rail: Broad bottom channel with pre-drilled anchoring holes ensures secure fixing to concrete ballast foundation blocks, structural steel purlins, or flat roof decks.
-
Top Mounting Track: The sloping rafter section accepts standard aluminum mounting profile rails, module clamps, and T-bolts for fast, standardized panel installation.
-
Structural Weather Resistance: Built from high-strength extruded aluminum alloy with stainless steel pivot hardware, designed to withstand severe wind loads, heavy snow accumulation, and outdoor weathering.
