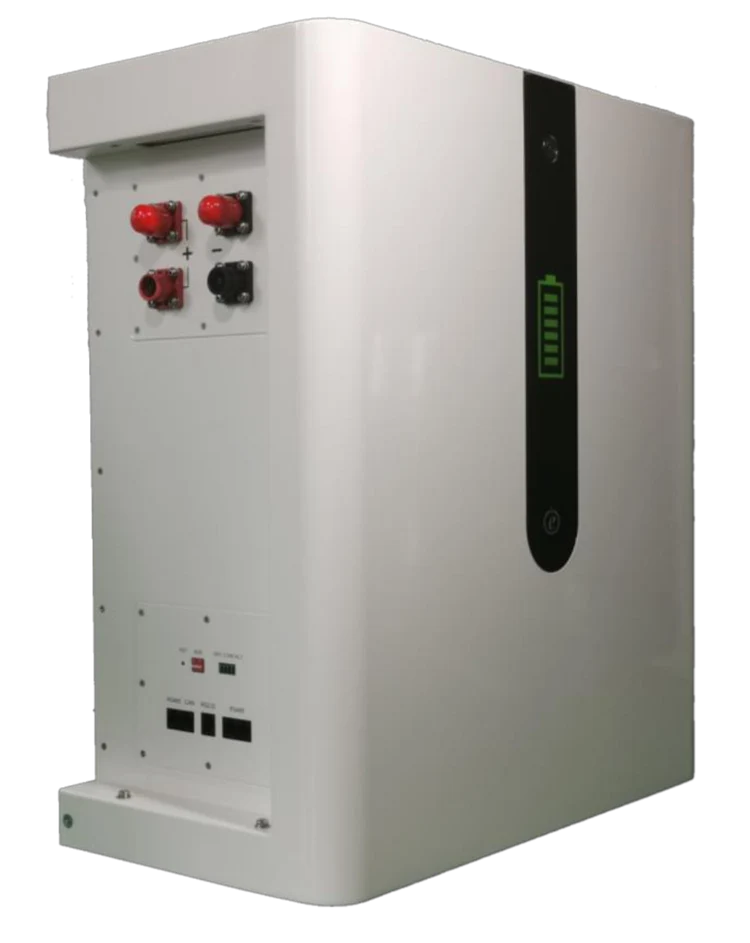

Greenrich 10.24kwh 200Ah 51.2V Battery

The Greenrich 10.24kWh 200Ah 51.2V Battery is a high-capacity, efficient energy storage solution, ideal for both residential and commercial applications. Here’s an overview of its features and specifications:

Model Description:

• Model: BESS-51.2V-200Ah-10.24kWh
• Battery Type: LFP (LiFePO4), known for safety and long life.
• System Weight: 94 ± 1 kg
• Dimensions: 550 x 280 x 610 mm (stackable)
• Optional Colors: White, Green
• Calendar Life: 10 years (under recommended conditions)

Electrical Specifications:

• Energy Capacity: 10.24 kWh
• Usable Capacity: 9.22 kWh (with 90% Depth of Discharge)
• Nominal Voltage: 51.2 V
• Operating Voltage Range: 43.2 V ~ 58.4 V

Operation and Performance:

• Constant Charging Current: 100A (40A recommended)
• Max. Charging Current: 110A
• Constant Discharge Current: 150A (100A recommended)
• Max. Discharging Current: 160A
• Standard Charge Power: 5000 W
• Max. Charge Power: 6500 W
• Standard Discharge Power: 7500 W
• Max. Discharging Power: 9000 W

Temperature and Environment:

• Discharge Temperature Range: -20℃ ~ 60℃
• Charge Temperature Range: 0℃ ~ 55℃
• Storage Temperature Range: -20℃ ~ 45℃
• Humidity Range: 10% ~ 85%

Battery Management System (BMS):

• Modules Inter-Connection: Supports 1 ~ 8 parallel connections
• Monitoring Parameters: System voltage, current, and temperature, including PCBA temperature
• Communication: RS-232, RS-485, CAN protocols for integration and monitoring
