Description

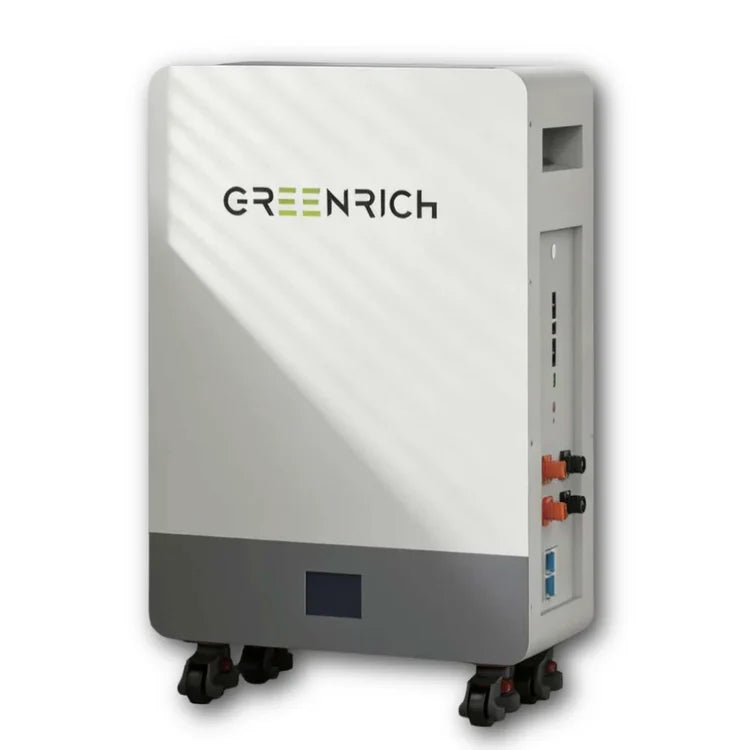

Greenrich AF16000 16kWh Floor-Standing Lithium Battery 51.2V
Brand: Greenrich
Model: AF16000
Type: Floor-Standing Lithium Iron Phosphate (LiFePO₄) Battery
Nominal Voltage: 51.2 V
Application: Residential, commercial and hybrid solar energy storage systems
Key Features
• 16 kWh nominal energy capacity — suitable for large homes and commercial backup systems
• 314 Ah capacity @ 51.2 V — stable 48 V-class battery platform
• LiFePO₄ @ GF chemistry — enhanced safety, thermal stability and long service life
• 8000-cycle lifespan — rated at 0.5C, 80% DoD, 70% End-of-Life
• High current capability — up to 200 A max charge and discharge
• Expandable up to 15 units in parallel — scalable to 240 kWh storage
• Integrated smart BMS — protects against over/under-voltage, over-current and temperature faults
• CAN & RS485 communication — compatible with leading 48 V hybrid inverters
• Built-in 3.5-inch display screen — real-time monitoring
• Quick-connect terminals & air switch — simplified installation and safety isolation
• Optional rental function & remote shut-off support
📐 Technical Specifications
| Specification | Value |
|---|---|
| Model | AF16000 |
| Battery Chemistry | LiFePO₄ @ GF |
| Battery Configuration | 16S1P |
| Nominal Voltage | 51.2 V |
| Nominal Capacity | 314 Ah |
| Nominal Energy | 16 kWh |
| Operating Voltage Range | 40 – 58.4 V |
| Rated Charge Current | 100 A |
| Max Charge Current | 200 A |
| Rated Discharge Current | 100 A |
| Max Discharge Current | 200 A |
| Cycle Life | 8000 cycles @ 0.5C, 80% DoD, 70% EOL |
| Max Parallel Units | 15 |
| Communication | CAN / RS485 |
| IP Rating | IP20 (Indoor Installation) |
| Operating Temp (Charge) | 0 °C to 55 °C |
| Operating Temp (Discharge) | -20 °C to 55 °C |
| Net Weight | ±124 kg |
| Dimensions (W × D × H) | 500 × 800 × 230 mm |
| Display | 3.5-inch LCD |
| Protection | Integrated BMS + Air Switch |
