Description

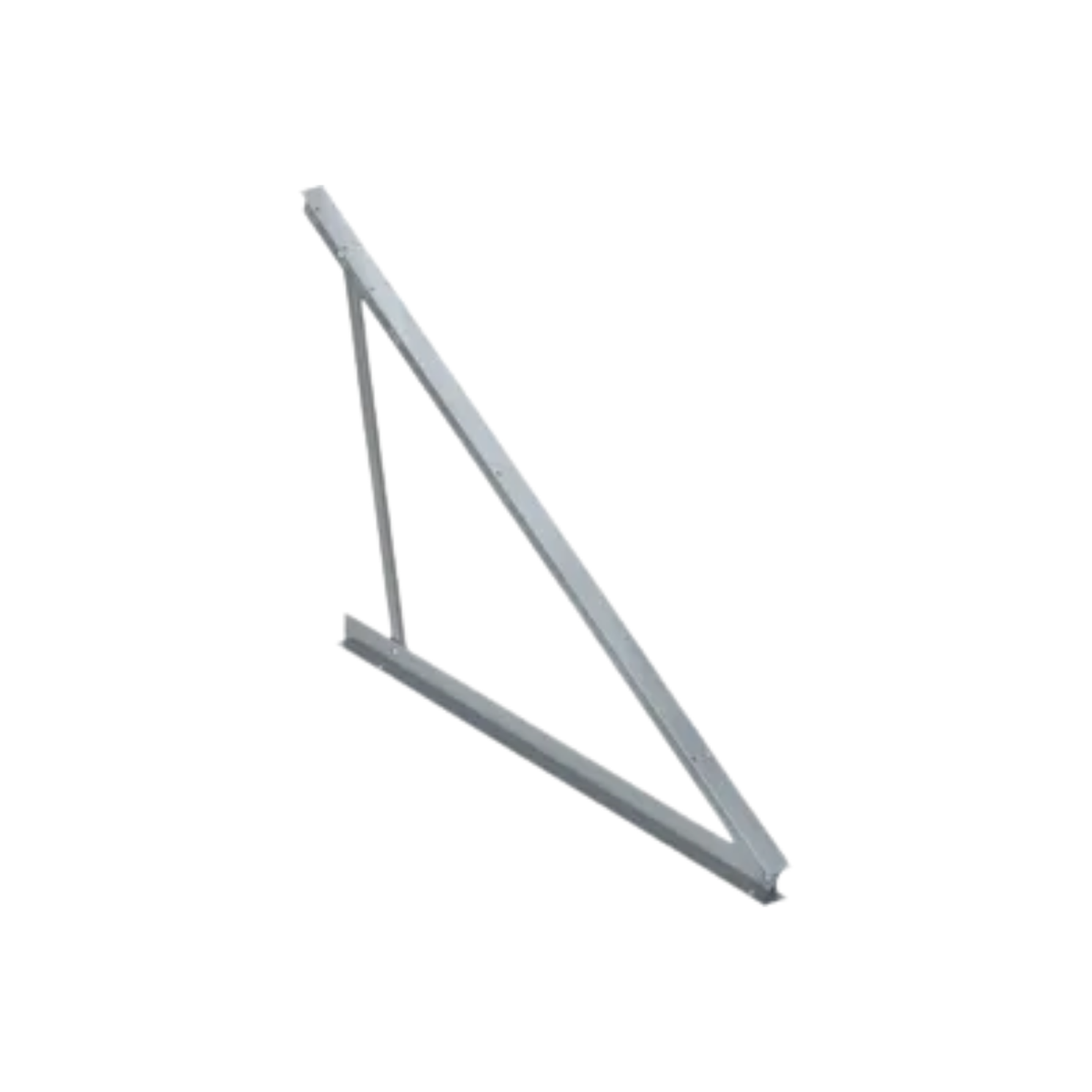

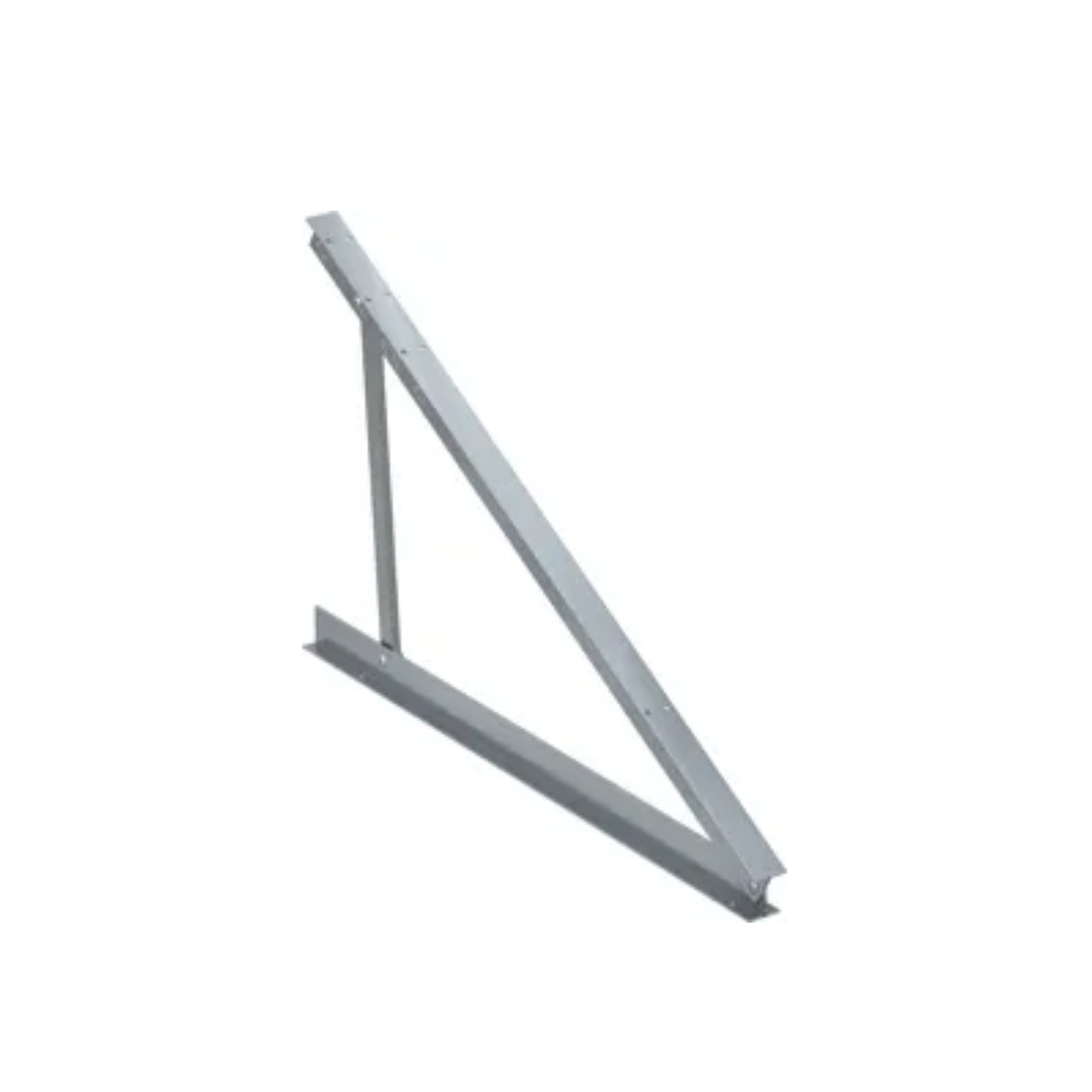

High-Angle Flat Roof Triangular Solar Tilt Frame (Fischer Steep-Tilt Triangle)
A heavy-duty aluminum triangular support frame featuring an extended vertical rear column, engineered to mount photovoltaic (PV) modules at steep tilt angles on flat roofs, ground platforms, or ballast structures.
-
High-Tilt Inclination Geometry: Designed with an elongated vertical rear strut and a long angled rafter beam to position PV panels at steep angles, ideal for high-latitude solar harvesting or shed-roof configurations.
-
Flanged Base Foundation Channel: Broad bottom channel with pre-drilled fixing points provides stable anchorage onto concrete ballast blocks, steel frames, or flat roof decks.
-
Top Rail Support Channel: The sloping upper rafter profile accepts standard aluminum solar mounting rails, clamps, and T-bolts for rapid panel array installation.
-
Corrosion-Resistant Extruded Aluminum: Constructed from high-strength, weather-resistant aluminum alloy with stainless steel connection hardware to withstand high wind uplift and heavy snow loads.
